DC Brushless Barrier

Parameters
Maximum straight boom length	1.8 Sec	3.5m
	3 Sec	4.5m
	5 Sec	6m
Opening and closing times	1.8~3s/3~6s
Voltage	DC24V
Motor power consumption	100W
Working temperature	-30⁰ to 80⁰C
Housing dimension	3552451035mm
Drive	DC brushless Moter
Maximum Remote-Control Distance	≥30m

Function Features :

Director is adjustable.
Auto bounce back function. Built-in sensor can detect when arm hits obstacle.
Intelligent limited sensor. Limited sensor can check open & close position automatically. No need adjusts it by hand.
Position memory function. The motor can remember limited position, so it will move back to right position even we turn motor handle to avoid motor stuck.
Lower working temperature. No thermal rotection even we don't add fan to cool motor.
Longer working life. It can open and close 5 million times.

Boom Type:

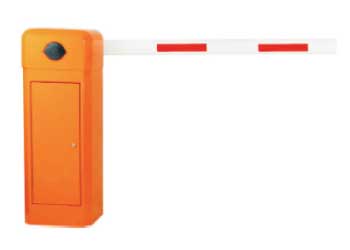

Straight Boom

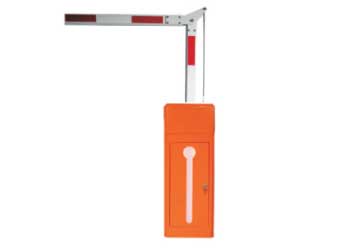

Articulate Boom Barrier

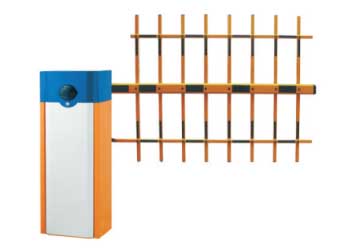

Fence Boom

Type	Opening and Closing Times	Maximum Boom Length
Straight Boom	1.8s	3.5m
	3s	4.5m
	5s	6m
Folding Boom	3s	4.5m
Folding Boom	6s	6m
Fence Boom	6s	4.5m

Retractable Straight Boom, easy for transportation (Optional)

A = Master Boom, B = Slave Boom (B < A)

Part B can be contracting inside in part A. This boom design is served for easy-transportation. From now on, 6m boom transportation can be easier and more convenient. 6m straight boom can be made as 4m+2m or 3m+3m.
