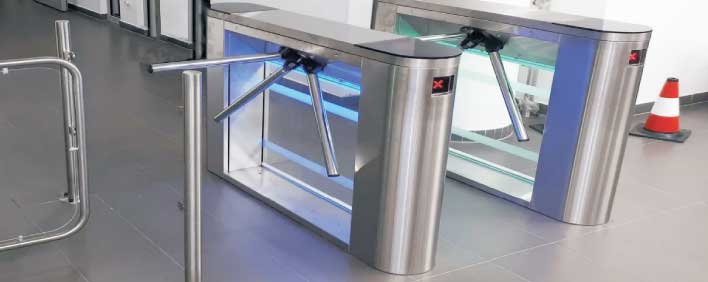

Tripod turnstile is a waist high access control turnstile with three revolving arms. Tripod turnstile restricts access to one person at one time with a set of rotating barrier arms. They can be operated manually or automatically been the most popular type of turnstile.

Tripod turnstile can vary in functionality. They can operate manually or with added electronics for locking and card reader access. Further, Tripod turnstile can be configured to allow access in a single direction or bi-directionally depending on project needs. Tripod turnstiles can also vary in appearance with different finishes like powder coating and stainless steel.


Features
  • Fully automatic, semi-automatic, mechanical for optional
  • Counting function optional
  • Bidirectional (Entering / Exiting) lane
  • Robust and long-lasting
  • Works in tandem with visitor management software for a digital record of all guests
  • Can be easily integrated into most access control systems
Applications
  • Schools
  • Office buildings
  • Industrial
  • Sports centers
  • Entertainment venues

products

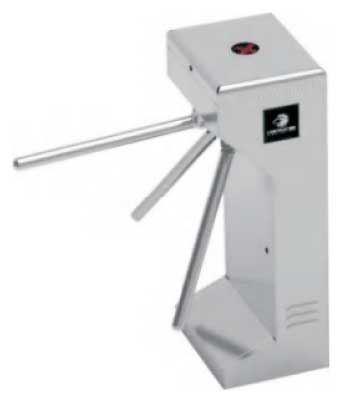

Module No INT-T301
Size 283x482x965mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

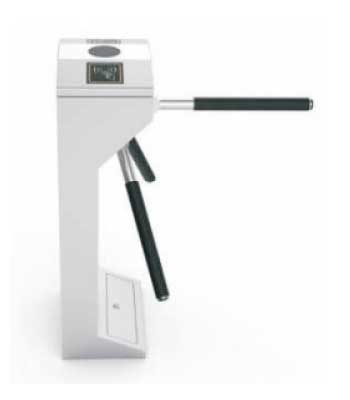

Module No INT-T302
Size 420x330x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

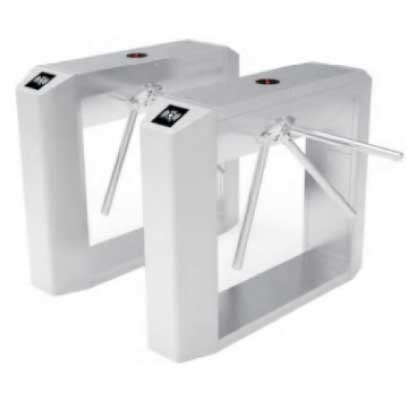

Module No INT-T303
Size 420x510x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

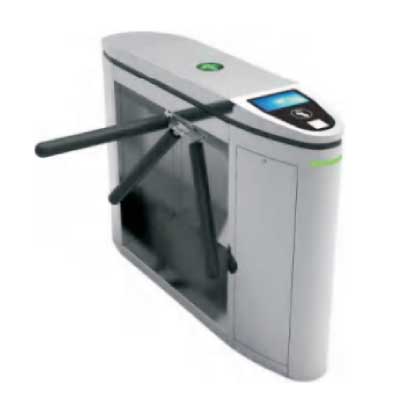

Module No INT-T304
Size 1200x280x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

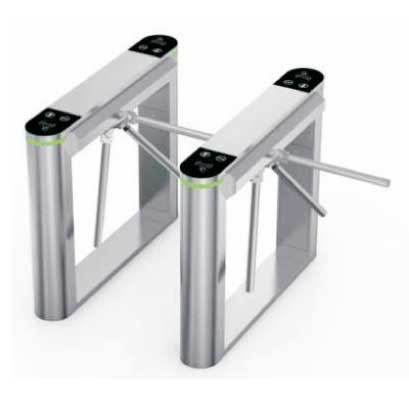

Module No INT-T305
Size 1200x280x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

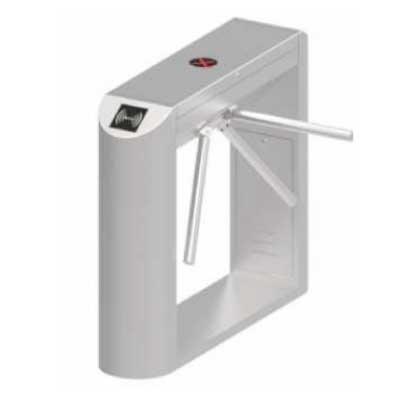

Module No INT-T310
Size 1400x280x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

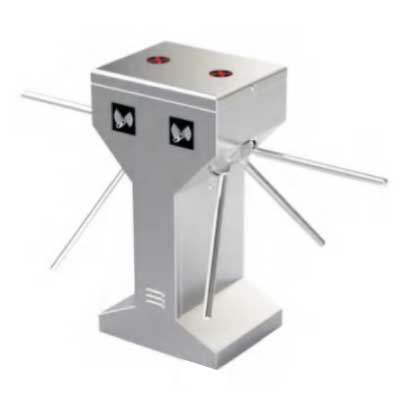

Module No INT-T311
Size 1200x230x980mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
products

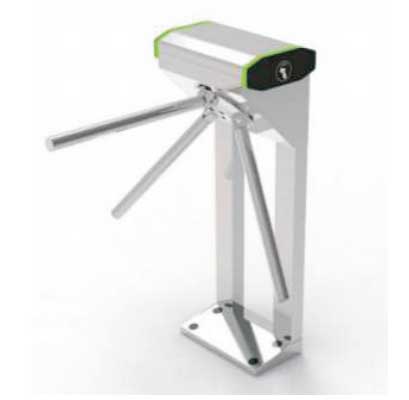

Module No INT-T312
Size 350x260x1000mm
Material 304 stainless steel (powder coating optional)
The material thickness 1.5mm
Unlocking time 0.2s
Traffic Speed 35 persons/min
Passage width 550mm
Applicable temperature -20-+700C
Power supply 100 to 240v
