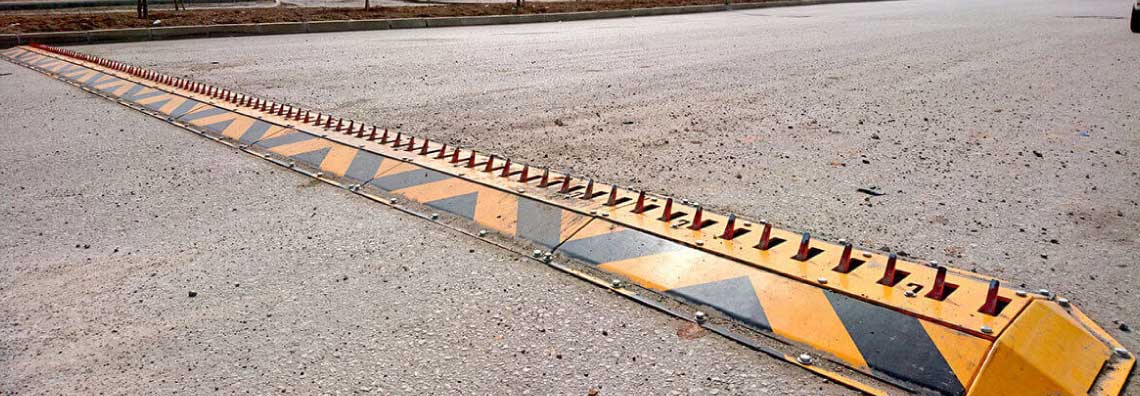

Tyre killer is composed by heavy duty spikes that rise from the ground; it operates like and access control barrier. Which prevents the passage of unauthorized vehicles or allows the exit from a supervised area.
It can be installed with other access control elements (for example bollards, road blocker or gates) in order to achieve an access contorl check-point at the highest level of security.
| Height of spikes (Rising) | 120mm (Uni); 80mm (Bi) |
| Thickness of spikes | 10mm |
| Thickness of panel | 12mm |
| Axis | ϕ25mm, 45# steel solid |
| Actuator | Single (Uni); Double (Bi) |
| Rising time | 1s- 2s |
| Lowering time | 1s - 2s |
| Manually rising / lowering | Support |
| Power consumption | 220W (Uni), 400W (Bi) |
| Length | 25 - 8m |
| Width | 550mm (Uni); 800mm (Bi) |
| Height (Lowering) | 80mm |
| Color | Traffic color: Yellow, Red |
| Color of reflective tape | Black; Yellow |
| Color of spikes | Traffic color: Yellow, Red |
| Remote control | Support |
| Switch button | Support |
| Sound & light warning | Optional |
| Work with traffic light | Support |
